PTFE Rod Seal Set:type RV

The rod PTFE Rod V Packing type RV, consisting of several chevron or V pressure rings and  header ring plus 1 back-up ring, is extremely suitable for medium for medium to heavy duty  applications. The stinctive hinge- like action of each V ring permits quick reaction to pressure or temperature changes and no adverse effect under axial/radial vibration. The multiple lip  configurations automatically distribute pressure and an effective seal along the shaft. It is  possible to split the seals to facilitate installation in case maintenance.

Application range

Pressure: ≤350BAR

Temperature: -40~+200℃

Speed: ≤0.5m/s

Material: Carbon fiber filled PTFE+ NBR

*Other materials are available for specified conditions

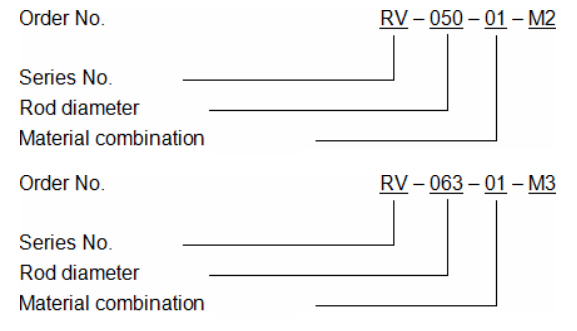

How to order

Optional material

01: 05T+NBR

02: 05T+VITON

03: 02T+NBR

04: 02T+VITON

05: HPU+POM

06: HPU+PA
