Single seal is designed for uni-directional pressurization rods in hydraulic applications but it is also appropriate for double-acting pistons in hydraulic cylinders if two sealing sets are arranged. Typical applications include control cylinders, servo-controlled systems, machine tools, and construction machinery.
Application range
Pressure: ≤400BAR
Temperature:-60~+200℃
Speed: ≤4m/s
Material: Bronze filled PTFE
*Other materials are available for specified conditions
Guidelines for the Selection of Special Sizes
| Rod diameter | Groove bottom | Groove width | Radius | Gap | Gland code | O-ring C.S. | ||
| φDi | φDa | L | R | T | ||||
| 100bar | 200bar | 400bar | ||||||
| 4~7.9 | Di+4.9 | 2.2 | 0.5 | 0.3 | 0.2 | 0.1 | A | 1.78 |
| 8~18.9 | Di+7.3 | 3.2 | 0.5 | 0.4 | 0.25 | 0.15 | B | 2.62 |
| 19~37.9 | Di+10.7 | 4.2 | 0.5 | 0.4 | 0.25 | 0.15 | C | 3.53 |
| 38~199.9 | Di+15.1 | 6.3 | 0.9 | 0.5 | 0.3 | 0.2 | D | 5.33 |
| 200~255.9 | Di+20.5 | 8.1 | 0.9 | 0.5 | 0.3 | 0.2 | E | 6.99 |
| 256~649.9 | Di+24.0 | 8.1 | 0.9 | 0.6 | 0.35 | 0.25 | F | 6.99 |
| 600~999.9 | Di+27.3 | 9.5 | 0.9 | 0.7 | 0.4 | 0.3 | G | 8.40 |
| 1000.0+ | Di+38.0 | 13.8 | 0.9 | 0.7 | 0.4 | 0.3 | H | 12.00 |

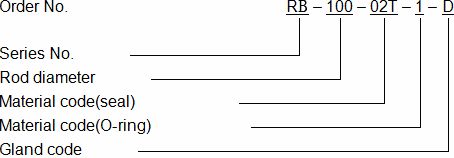

How to order
Note: For rod diameter≧1000.0mm, K should be added in prefix.
e.g. for seal 1200x1238x13.8mm should be denominated as RB-K1200-02T-1-H.
