The wiper rings is a double-acting scraper with two O-rings functioned as elastic energizer to preload the PTFE compound ring. Its profile seal ring consists of a sealing lip and a wiper edge. The double O-ring design can improve rod sealing performance under short-stroke and high-frequency motion that is common application in fork-lift trucks, injection molding machines, compression molding press, and agriculture equipment. A small bore hole for relieving pressure is recommended for some combined seals that lack of sufficient pump-back capability.
Application range
Temperature:-40~+200℃
Speed: ≤4m/s
Standard Material: Bronze filled PTFE
Other materials are available for specified conditions
Guidelines for the Selection of Special Sizes
| Rod diameter | Groove bottom | Groove width | Groove opening Dia | Radius | Gland cord | O-ring C.S. | ||
| φDi | φDa | L | φDs | R | ||||
| 19.0~39.9 | Di+7.6 | 4.2 | Di+1.0 | 0.4 | A | 1.78 | ||
| 40.0~69.9 | Di+8.8 | 6.3 | Di+1.5 | 1.2 | B | 2.62 | ||
| 70.0~139.9 | Di+12.2 | 8.1 | Di+2.0 | 2.0 | C | 3.53 | ||
| 140.0~499.9 | Di+16.0 | 11.5 | Di+2.0 | 2.0 | D | 5.33 | ||
| 500.0~650.9 | Di+24.0 | 15.5 | Di+2.0 | 2.0 | E | 6.99 | ||
| 650.0+ | Di+27.3 | 18.0 | Di+2.5 | 2.0 | F | 8.40 | ||

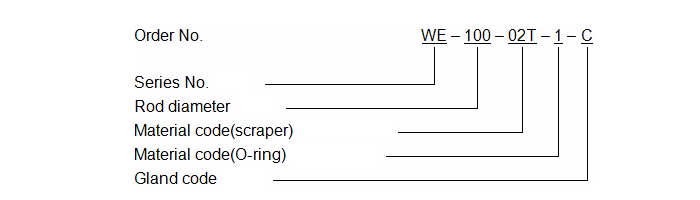

How to order:
