Single seal is designed for uni-directional pressurization pistons in hydraulic applications but it is also appropriate for double-acting pistons in hydraulic cylinders if two sealing sets are arranged. Typical applications include control cylinders, servo-controlled systems, machine tools, and construction machinery.
Application range
Pressure: ≤400BAR
Temperature: -60~+200℃
Speed: ≤4m/s
Material: Bronze filled PTFE
*Other materials are available for specified conditions

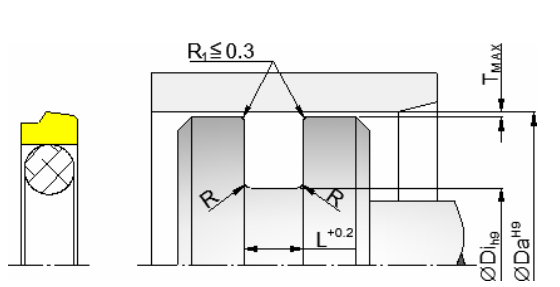

Guidelines for the Selection of Special Sizes
| Piston diameter | Groove bottom | Groove width | Radius | Gap | Gland code | O-ring C.S. | ||
| φDa | φDi | L | R | T | ||||
| 100bar | 200bar | 400bar | ||||||
| 8~16.9 | Di-4.9 | 2.2 | 0.5 | 0.3 | 0.2 | 0.1 | A | 1.78 |
| 17~26.9 | Di-7.3 | 3.2 | 0.5 | 0.4 | 0.25 | 0.15 | B | 2.62 |
| 27~59.9 | Di-10.7 | 4.2 | 0.5 | 0.4 | 0.25 | 0.15 | C | 3.53 |
| 60~199.9 | Di-15.1 | 6.3 | 0.9 | 0.5 | 0.3 | 0.2 | D | 5.33 |
| 200~255.9 | Di-20.5 | 8.1 | 0.9 | 0.5 | 0.3 | 0.2 | E | 6.99 |
| 256~669.9 | Di-24.0 | 8.1 | 0.9 | 0.6 | 0.35 | 0.25 | F | 6.99 |
| 670~999.9 | Di-27.3 | 9.5 | 0.9 | 0.7 | 0.4 | 0.3 | G | 8.40 |
| 1000.0+ | Di-38.0 | 13.8 | 0.9 | 0.7 | 0.4 | 0.3 | H | 12.00 |

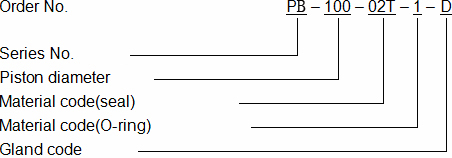

How to order
Note：For bore diameter≧1000.0mm, K should be added in prefix.
e.g. for seal 1200x1162x13.8mm should be denominated as PB-K1200-02T-1-H.
