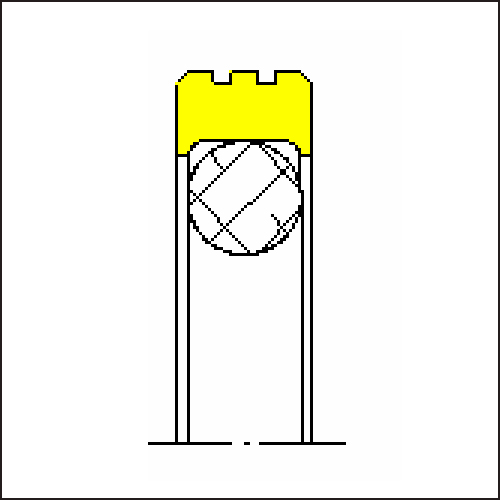

TP rotary seal is alternative to TR profile but providing outside sealing in bi-directional pressurization applications. It is used only when TR seal can not be accepted.
Application Range
Pressure: ≤300BAR
Temperature: -60~+200℃
Speed: ≤1m/s
Standard Material: Carbon Fibre filled PTFE
*Other materials are available for specified conditions

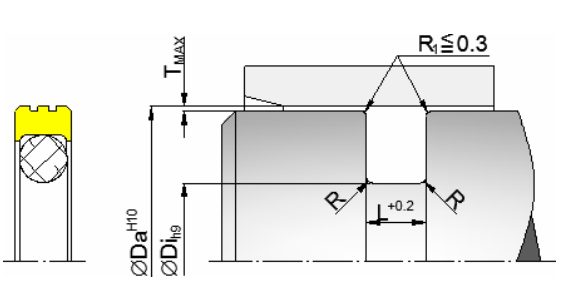

Guidelines for the Selection of Special Sizes
| Rod diameter | Groove bottom | Groove width | Radius | Gap | Gland code | O-ring C.S. | ||
| φDa | φDi | L | R | T | ||||
| 8~14.9 | Da-4.9 | 2.2 | 0.5 | 0.1 | A | 1.78 | ||
| 15~39.9 | Da-7.5 | 3.2 | 0.5 | 0.1 | B | 2.62 | ||
| 40~79.9 | Da-11.0 | 4.2 | 0.5 | 0.15 | C | 3.53 | ||
| 80~132.9 | Da-15.5 | 6.3 | 0.9 | 0.2 | D | 5.33 | ||
| 133~329.9 | Da-21.0 | 8.1 | 0.9 | 0.25 | E | 6.99 | ||
| 330~650.0 | Da-24.5 | 8.1 | 0.9 | 0.25 | F | 6.99 | ||

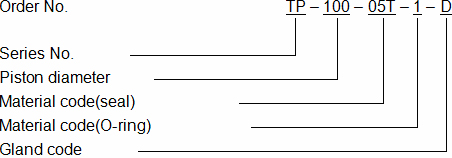

How to order
