The function of wiper rings is a double-acting scraper with two back-to-back arranged scraping lips. The O-ring provides constant pressure of the scraping lips against the sliding rod surface over a long period of time. It features minimal break-out and dynamic friction to guarantee no stick-slip by premium PTFE compound.
Application range
Temperature: -40~+200℃
Speed: ≤4m/s
Standard material: Bronze filled PTFE
* Other materials are available for specified conditions
Guidelines for the Selection of Special Sizes
| Rod diameter | Groove bottom | Groove width | Groove opening dia. | Radius | Gland code | O-ring C.S. | ||
| φDi | φDa | L | φDs | R | ||||
| 19.0~39.9 | Di+7.6 | 4.2 | Di+1.5 | 0.8 | A | 2.62 | ||
| 40.0~69.9 | Di+8.8 | 6.3 | Di+1.5 | 0.8 | B | 2.62 | ||
| 70.0~139.9 | Di+12.2 | 8.1 | Di+2.0 | 1.0 | C | 3.53 | ||
| 140.0~399.9 | Di+16.0 | 9.5 | Di+2.5 | 1.5 | D | 5.33 | ||
| 400.0~650.9 | Di+24.0 | 14.0 | Di+2.5 | 1.5 | E | 6.99 | ||
| 650.0+ | Di+27.3 | 16.0 | Di+2.5 | 2.0 | F | 8.40 | ||

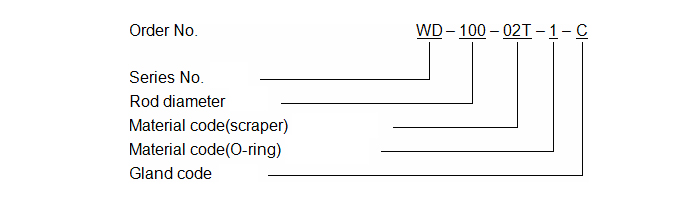

How to order
